Quotas

As with any other AWS service, AWS Storage Gateway is bound by certain quotas. These quotas can be soft or hard limits constraining the service. Different quotas apply depending on the flavor of storage gateway that you implement. Here is an indication of the main quotas for each different type, but remember to check the AWS documentation to have the latest and most up-to-date figures:

  • File Gateway quotas concern the maximum number of file shares per gateway (10), the maximum size of an individual file in the share (5 TB), the maximum path length (1,024 TiB). Note that one file share maps exactly to one Amazon S3 bucket. Adding more file shares will add more S3 buckets onto your AWS environment, so you also need to make sure you will not be exceeding your Amazon S3 quotas.
  • Volume Gateway quotas are the maximum size of a volume (32 TiB for cached volumes; 16 TiB for stored volumes), the maximum number of volumes per gateway (32), the maximum size of all volumes per gateway (1,024 TiB for cached volumes; 512 TiB for stored volumes).
  • Tape Gateway quotas concern the minimum and maximum sizes of a virtual tape (100 gibibytes (GiB) -> 5 TiB), the maximum number of virtual tapes per virtual tape library (1,500), the total size of all tapes in a library (1 pebibyte (PiB)).

This concludes the first half of this chapter, which focused on the creation of a hybrid infrastructure across on-premises infrastructure and AWS. In the second half of this chapter, you will investigate how to enhance communication first between your private environment on AWS and AWS services or third-party services offered on AWS, and secondly, within the realm of your AWS environment.

The following sections will describe how you can improve communication between your private environment on AWS and AWS services or third-party services offered on AWS.

Leveraging VPC Endpoints

AWS offers a highly available and scalable technology called AWS PrivateLink. AWS PrivateLink enables you to privately connect any of your VPCs either to the supported AWS services or to VPC endpoint services (that is, services powered by AWS PrivateLink that are hosted in other AWS accounts, whether by you or by a third party). For example, many of the services that AWS partners offer on AWS Marketplace support AWS PrivateLink nowadays.

Using AWS PrivateLink, you can then avoid exposing the traffic between your VPC and the target service on AWS to the internet; the E2E communication does not leave the AWS network.

Now, how does this work?

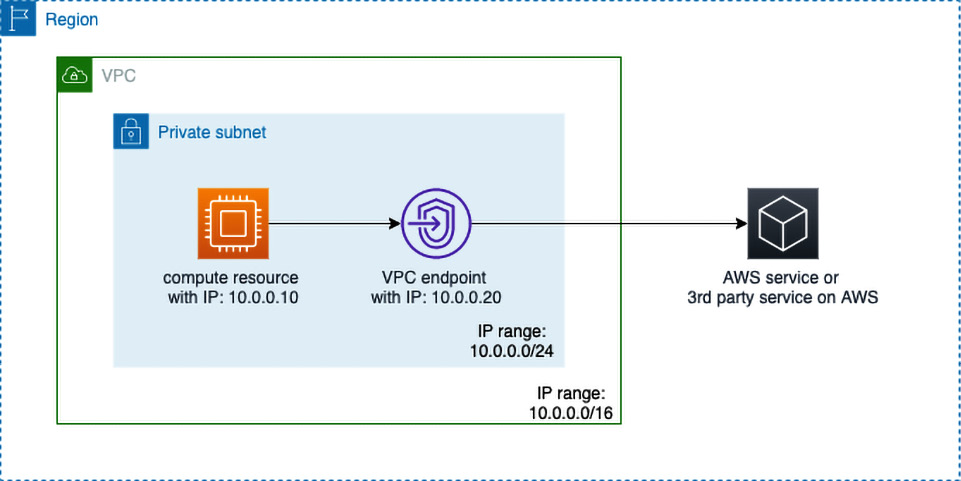

To use AWS PrivateLink, you simply create a VPC endpoint that will serve as an entry point to reach the destination service. This is illustrated in Figure 2.12:

Figure 2.12: VPC endpoint

As illustrated in the preceding diagram, a VPC endpoint does not require a public IP address, an internet gateway, a peering link, a VPN, or a DX connection to be able to reach the destination service using AWS PrivateLink. The traffic always stays within the boundaries of the AWS network.

VPC endpoints are highly available and scalable virtual devices that you create in your AWS environment. There are currently three types of endpoints, as outlined here:

  1. Interface endpoints
  2. Gateway Load Balancer (GWLB) endpoints
  3. Gateway endpoints

The following sections discuss each of these in detail.
