From the supported IGP protocols, the one that is covered is the Open Shortest Path First (OSPF). It is an IETF link-state routing protocol, which distributes information within a single autonomous system(AS).
OSPF has two versions: IPv4 OSPFv2 (version 2), which is described in RFC 2328, and IPv6 OSPFv3 (version 3), which is described in RFC 2740.
OSPF utilizes hello packets (multicast IPv4 224.0.0.5 or IPv6 FF02::5) for neighbor discovery. These hello packets are sent out on each OSPF-enabled interface to discover other OSPF neighbor routers. OSPF sends hello packets every 10 seconds (the OSPF default hello_interval is set to 10 seconds). In addition, OSPF uses hello packets for keepalive and bidirectional traffic. For keepalive, OSPF determines whether a neighbor is still communicating. If a router does not receive a hello packet within 40 seconds (the OSPF dead-interval is usually a multiple of the hello interval; the default is four times the hello interval), the neighbor is removed from the local neighbor table.
When a neighbor is discovered, the two routers compare information in the hello packet to determine whether the routers have compatible configurations. The neighbor routers attempt to establish adjacency, which means that the routers synchronize their link-state databases to ensure that they have identical OSPF routing information. Adjacent routers share link-state advertisements (LSAs) that include information about the operational state of each link, the cost of the link, and any other neighbor information. The routers then flood these received LSAs out every OSPF-enabled interface so that all OSPF routers eventually have identical link-state databases. When all OSPF routers have identical link-state databases, the network is converged. Each router then uses Dijkstra’s Shortest Path First (SPF) algorithm to build its route table.
The key differences between the OSPFv3 and OSPFv2 protocols are as follows:
OSPFv3 expands on OSPFv2 to provide support for IPv6 routing prefixes and the larger size IPv6 addresses, OSPF Hello address FF02::5.
LSAs in OSPFv3 are expressed as prefix and prefix length instead of address and mask.
The router ID and area ID are 32-bit numbers with no relationship to IPv6 addresses.
OSPFv3 uses link-local IPv6 addresses for neighbor discovery and other features.
OSPFv3 can use the IPv6 authentication trailer (RFC 6506) or IPSec (RFC 4552) for authentication. However, neither of these options is supported on Cisco NX-OS.
OSPFv3 redefines LSA types.
OSPF uses link-state advertisements (LSAs) to build its routing table. When an OSPF router receives an LSA, it forwards that LSA out every OSPF-enabled interface, flooding the OSPF area with this information. This LSA flooding guarantees that all routers in the network have identical routing information. LSA flooding depends on the OSPF area configuration. The LSAs are flooded based on the link-state refresh time (every 30 minutes by default). Each LSA has its own link-state refresh time.
OSPFv2 LSAs have seven different types (LSA type 1 to 7) and extensions (LSA 9 to 11) called Opaque, as shown in Table 1-2.

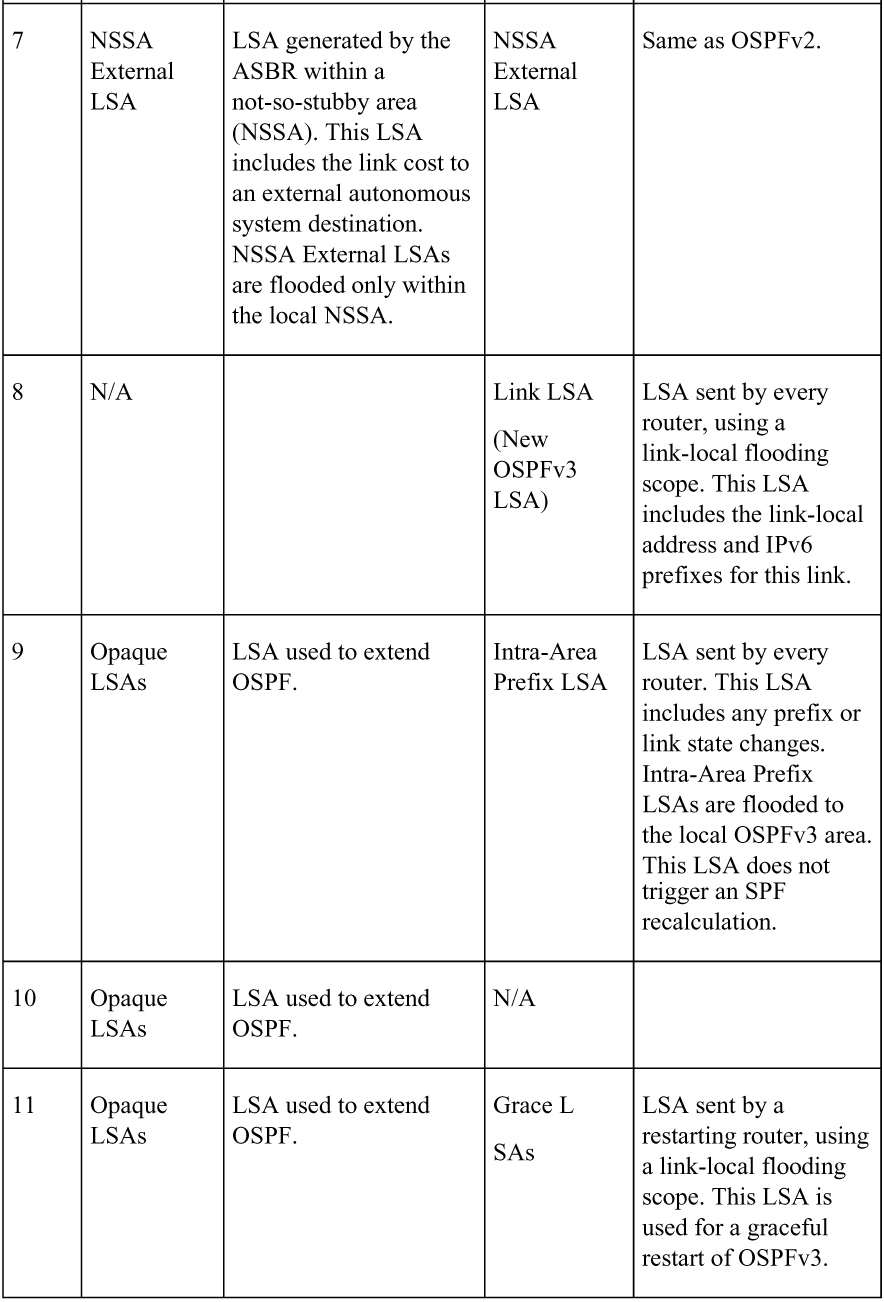

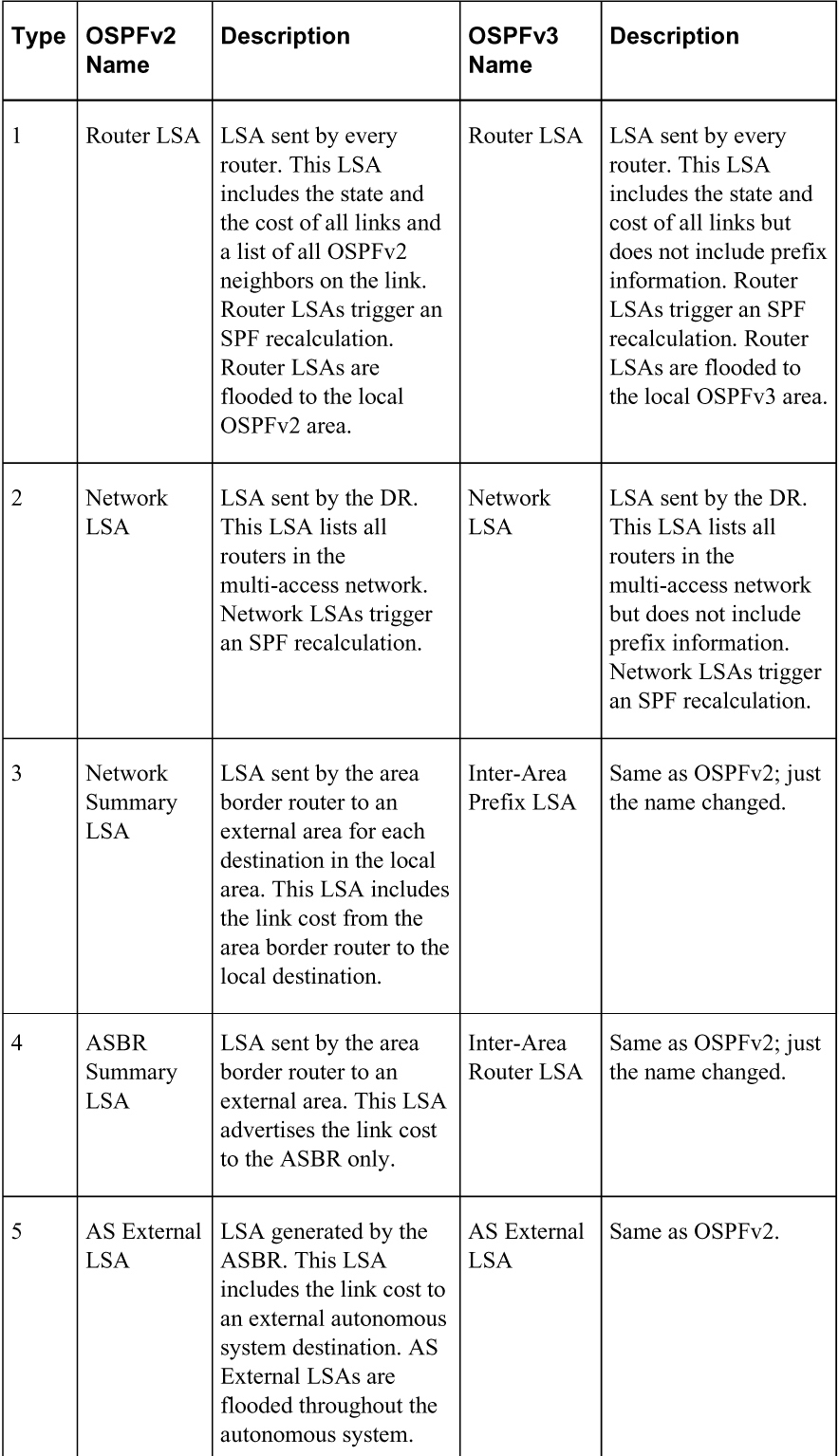

Table 1-2 OSPFv2 and OSPFv3 LSAs Supported by Cisco NX-OS
Opaque LSAs consist of a standard LSA header followed by application-specific information. This information might be used by OSPFv2 or by other applications. OSPFv2 uses Opaque LSAs to support the OSPFv2 graceful restart capability. The three Opaque LSA types are defined as follows:
LSA type 9: Flooded to the local network.
LSA type 10: Flooded to the local area.
LSA type 11: Flooded to the local autonomous system.
In OSPFv3, LSA changed by creating a separation between prefixes and the SPF tree. There is no prefix information in LSA types 1 and 2. You find only topology adjacencies in these LSAs; you don’t find any IPv6 prefixes in them. Prefixes are now advertised in type 9 LSAs, and the link-local addresses that are used for next hops are advertised in type 8 LSAs. Type 8 LSAs are flooded only on the local link, whereas type 9 LSAs are flooded within the area. The designers of OSPFv3 could have included link-local addresses in type 9 LSAs, but because these are only required on the local link, it would be a waste of resources.
To control the flooding rate of LSA updates in your network, you can use the LSA group pacing feature. LSA group pacing can reduce high CPU or buffer usage. This feature groups LSAs with similar link-state refresh times to allow OSPF to pack multiple LSAs into an OSPF update message.
Each router maintains a link-state database for the OSPF network. This database contains all the collected LSAs and includes information on all the routes through the network. OSPF uses this information to calculate the best path to each destination and populates the routing table with these best paths.
LSAs are removed from the link-state database if no LSA update has been received within a set interval, called the MaxAge. Routers flood a repeat of the LSA every 30 minutes to prevent accurate link-state information from being aged out. The Cisco NX-OS operating system supports the LSA grouping feature to prevent all LSAs from refreshing at the same time.
