You can configure separate ranges of addresses in the PIM or PIM6 domain using the multicast distribution modes described in Table 1-22.
Table 1-22 PIM and PIM6 Multicast Distribution Modes
Tables 1-23 through 1-25 describe the most-used multicast configuration commands. For the full list of commands, refer to the Nexus Multicast Routing Configuration Guide in the reference section at the end of this chapter.

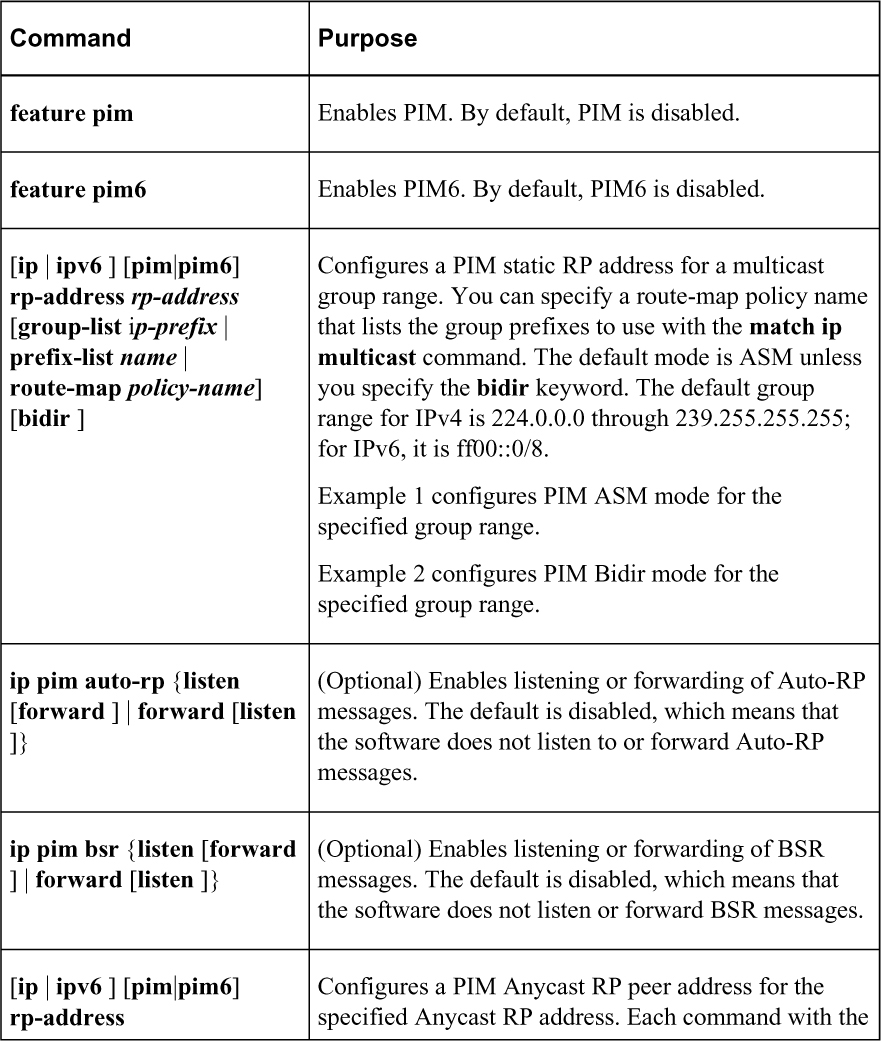

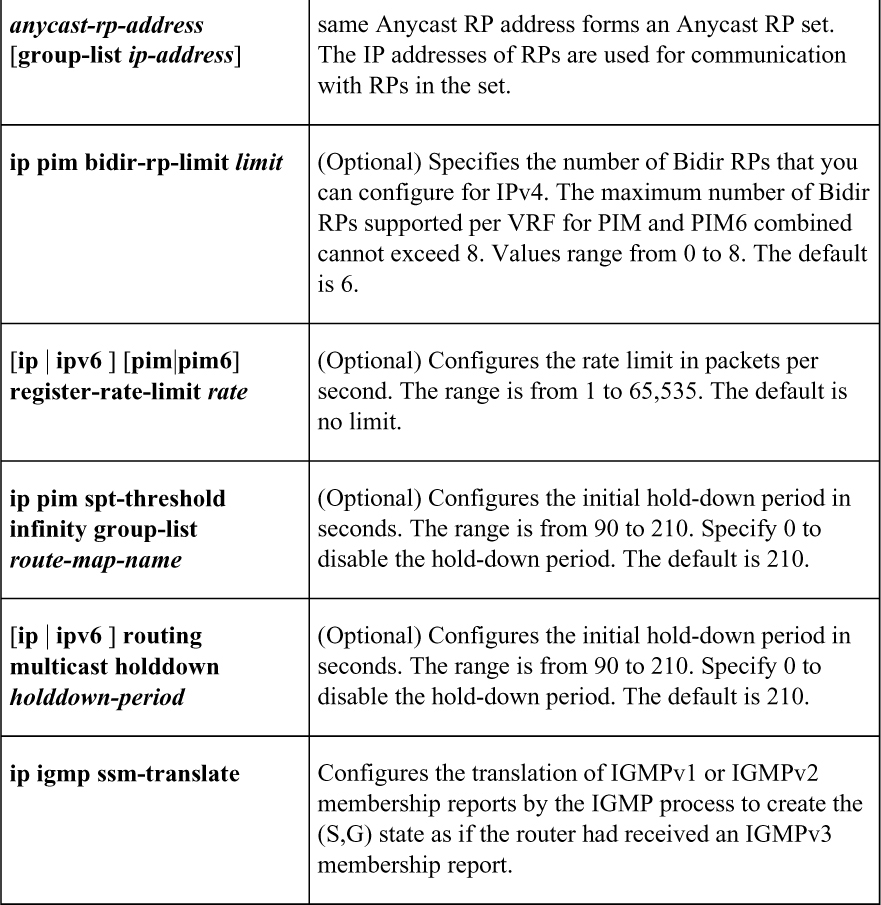

Table 1-23 Multicast Global-Level Commands

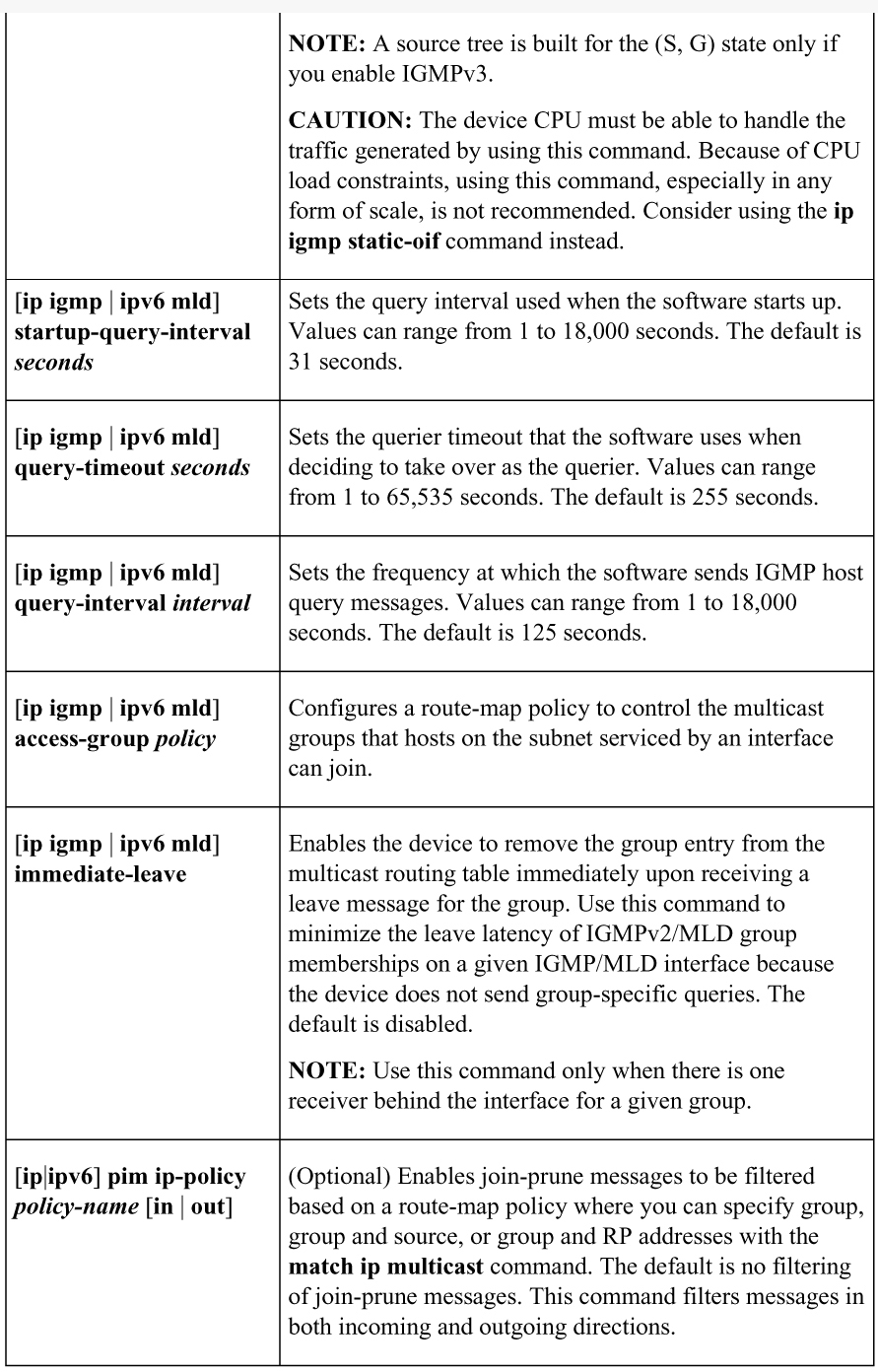

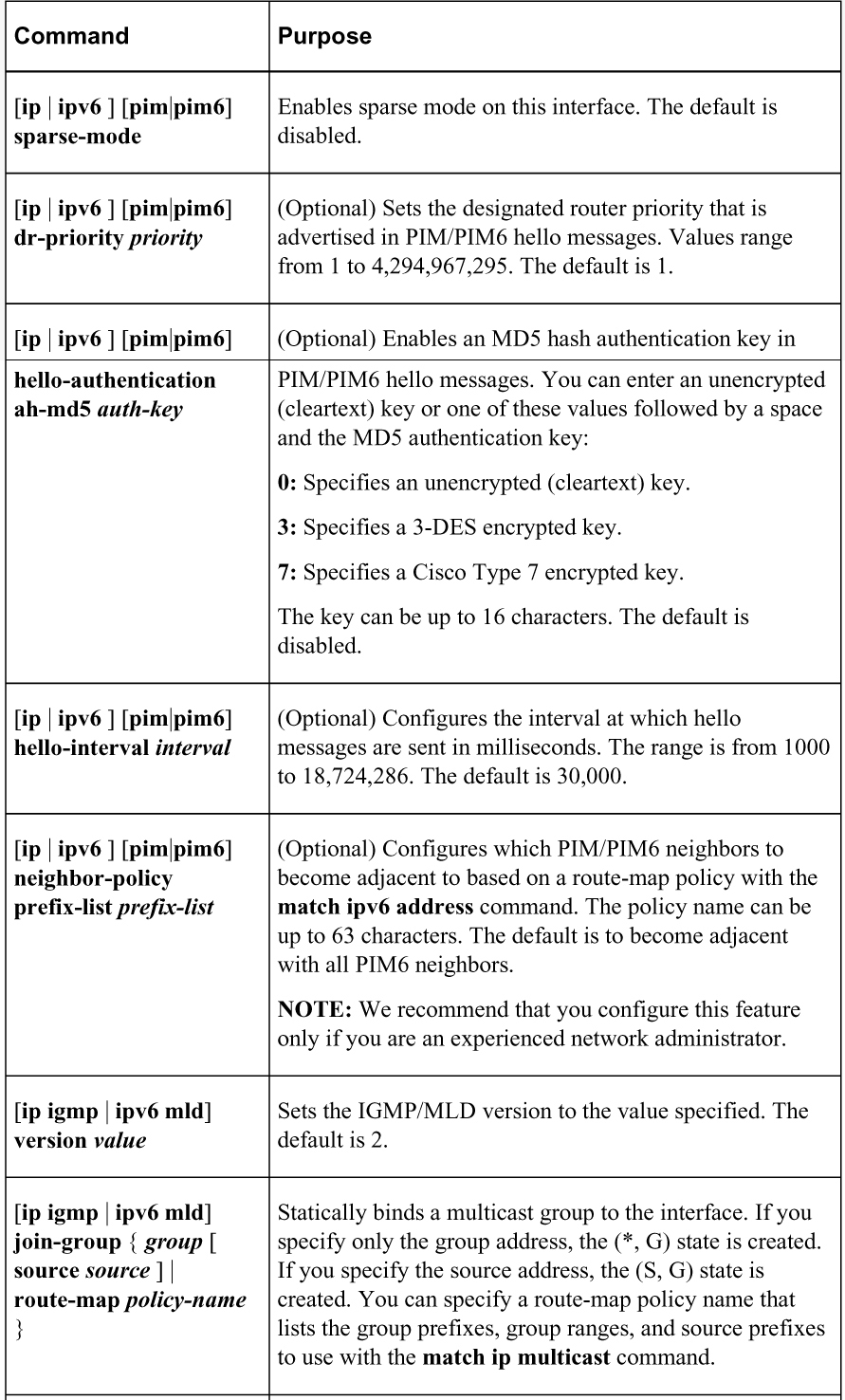

Table 1-24 Multicast Interface-Level Commands

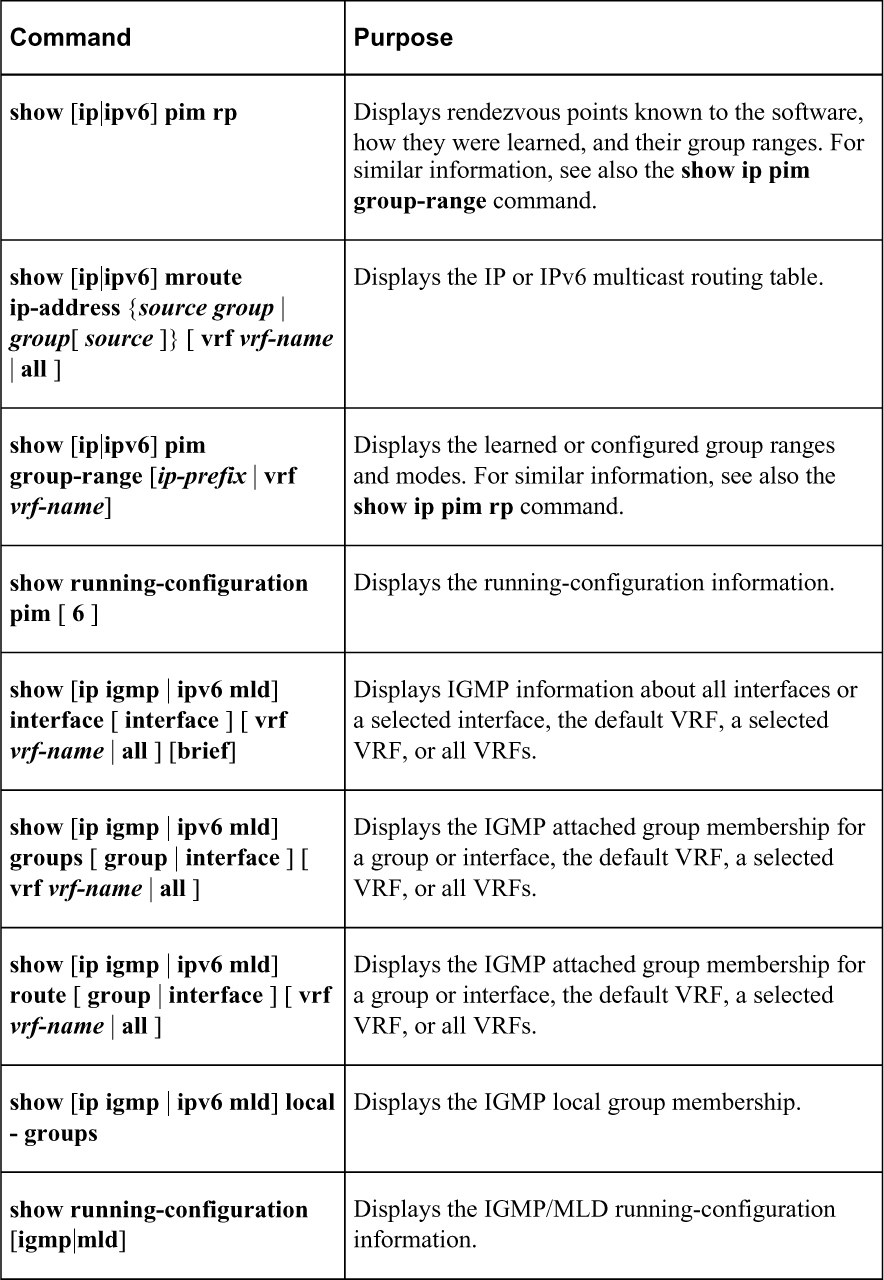

Table 1-25 Multicast Global-Level BGP Verification Commands

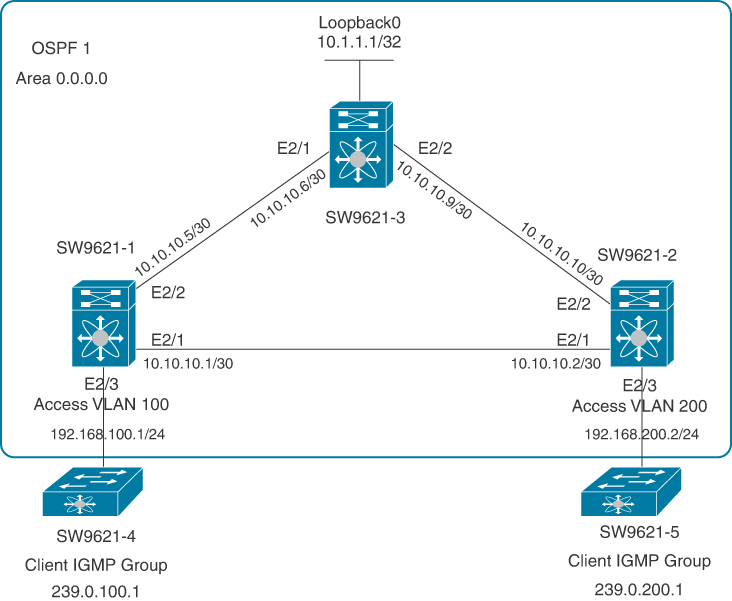

Figure 1-18 shows the network topology for the configuration that follows, which demonstrates how to configure Nexus multicast routing.
Figure 1-18 Multicast Network Topology
Example 1-18 shows the SW9621-1 Multicast PIM feature enabling and IGMP configurations.
Example 1-18 Multicast IGMP SW9621-1 Configuration and Verifications
SW9621-1(config)#
feature interface-vlan
SW9621-1(config)#
feature pim
SW9621-1(config)#
vlan 100
SW9621-1(config)#
interface vlan 100
SW9621-1(config-if)#
ip pim sparse-mode
SW9621-1(config-if)#
ip address 192.168.100.1/24
SW9621-1(config-if)#
no shut
SW9621-1(config)#
interface e2/3
SW9621-1(config-if)#
switchport mode access
SW9621-1(config-if)#
switchport access vlan 100
W9621-1#
show ip igmp int vlan 100
IGMP Interfaces for VRF “default”
Vlan100, Interface status: protocol-up/link-up/admin-up
IP address: 192.168.100.1, IP subnet: 192.168.100.0/24
Active querier: 192.168.100.1, version: 2, next query sent in: 00:00:15
Membership count: 0
Old Membership count 0
IGMP version: 2, host version: 2
IGMP query interval: 125 secs, configured value: 125 secs
IGMP max response time: 10 secs, configured value: 10 secs
IGMP startup query interval: 31 secs, configured value: 31 secs
IGMP last member mrt: 1 secs
IGMP last member query count: 2
IGMP group timeout: 260 secs, configured value: 260 secs
IGMP querier timeout: 255 secs, configured value: 255 secs
IGMP unsolicited report interval: 10 secs
IGMP robustness variable: 2, configured value: 2
IGMP reporting for link-local groups: disabled
IGMP interface enable refcount: 1
IGMP interface immediate leave: disabled
IGMP VRF name default (id 1)
IGMP Report Policy: None
IGMP State Limit: None
IGMP interface statistics: (only non-zero values displayed)
General (sent/received):
v2-queries: 33/33, v2-reports: 0/0, v2-leaves: 0/0
Errors:
Interface PIM DR: Yes
Interface vPC SVI: No
Interface vPC CFS statistics:
SW9621-1#
show ip igmp snooping vlan 100
Global IGMP Snooping Information:
IGMP Snooping enabled
Optimised Multicast Flood (OMF) enabled
IGMPv1/v2 Report Suppression enabled
IGMPv3 Report Suppression disabled
Link Local Groups Suppression enabled
IGMP Snooping information for vlan 100
IGMP snooping enabled
Lookup mode: IP
Optimised Multicast Flood (OMF) enabled
IGMP querier present, address: 192.168.100.1, version: 2, i/f Vlan100
Querier interval: 125 secs
Querier last member query interval: 1 secs
Querier robustness: 2
Switch-querier disabled
IGMPv3 Explicit tracking enabled
IGMPv2 Fast leave disabled
IGMPv1/v2 Report suppression enabled
IGMPv3 Report suppression disabled
Link Local Groups suppression enabled
Router port detection using PIM Hellos, IGMP Queries
Number of router-ports: 1
Number of groups: 0
VLAN vPC function disabled
Active ports:
Eth2/3
Example 1-19 shows SW9621-2 Multicast PIM configurations and IGMP status.
Example 1-19 Multicast IGMP SW9621-2 Configuration and Verifications
SW9621-2(config)#
feature interface-vlan
SW9621-2(config)#
feature pim
SW9621-2(config)#
vlan 200
SW9621-2(config)#
int vlan 200
SW9621-2(config-if)#
ip address 192.168.200.1/24
SW9621-2(config-if)#
ip igmp ver 3
SW9621-2(config-if)#
ip pim sparse-mode
SW9621-2(config-if)#
no shut
SW9621-2(config)#
interface e2/3
SW9621-2(config-if)#
switchport mode access
SW9621-2(config-if)#
switchport access vlan 200
SW9621(config-if)#
show ip igmp snooping vlan 200
Global IGMP Snooping Information:
IGMP Snooping enabled
Optimised Multicast Flood (OMF) enabled
IGMPv1/v2 Report Suppression enabled
IGMPv3 Report Suppression disabled
Link Local Groups Suppression enabled
IGMP Snooping information for vlan 200
IGMP snooping enabled
Lookup mode: IP
Optimised Multicast Flood (OMF) enabled
IGMP querier present, address: 192.168.200.1, version: 3, i/f Vlan200
Querier interval: 125 secs
Querier last member query interval: 1 secs
Querier robustness: 2
Switch-querier disabled
IGMPv3 Explicit tracking enabled
IGMPv2 Fast leave disabled
IGMPv1/v2 Report suppression enabled
IGMPv3 Report suppression disabled
Link Local Groups suppression enabled
Router port detection using PIM Hellos, IGMP Queries
Number of router-ports: 1
Number of groups: 0
VLAN vPC function disabled
Active ports:
Eth2/3
