Networking is a key aspect in meeting the security and compliance requirements of an organization. It determines whether and how resources in your Amazon Web Services (AWS) environment can be accessed from anywhere in your organization and beyond.
This chapter will cover the services on AWS that can be used to design hybrid networks, allowing an organization to reach AWS resources from its on-premises environments and vice versa. You will learn how to connect to AWS services without going through the internet and will also look at network communication across multiple AWS accounts.
The following topics will be covered in this chapter:
The first option when it comes to protecting connectivity between an enterprise’s on-premises infrastructure and its AWS environment is to establish a VPN connection. AWS offers several alternatives to achieve that. The following section details each of them.
The first one is AWS Managed VPN, or Site-to-Site VPN. This is a fully managed service that provides an Internet Protocol Security (IPsec) VPN connection over the internet from your on-premises network equipment to AWS-managed network equipment attached to your AWS VPC.
The VPN concentrator end on the AWS side can be either a virtual private gateway (VGW) attached to a single VPC, as illustrated in the following diagram, or a transit gateway (TGW) attached to multiple VPCs (see Figure 2.2). The other end connecting to your on-premises equipment is called a customer gateway (CGW):

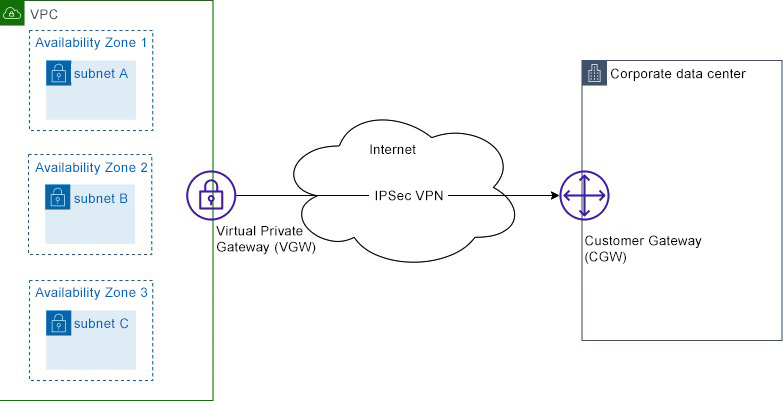

Figure 2.1: VPN connection between single VPC and on-premises equipment
The architecture you choose depends on your AWS environment network topology. Figure 2.2 shows the TGW option:

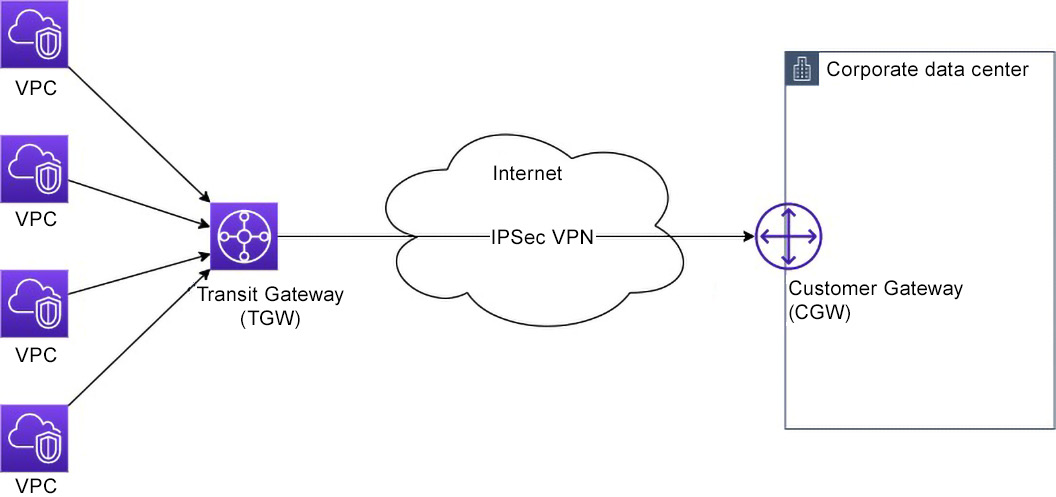

Figure 2.2: VPN connection between TGW and on-premises equipment
Complex organizations usually end up managing multiple VPCs that require inter-VPC communication, connectivity to the internet, and/or connectivity to your on-premises infrastructure. They then often leverage the TGW service to have a clean hub-and-spoke network model (more on this in the section dedicated to TGWs at the end of this chapter).
It is worth noting that AWS Managed VPN also provides redundancy and automatic failover, therefore it is highly recommended to connect your VGW or TGW to two separate CGWs on your end. By doing so, you establish two separate VPN connections, and if one of your on-premises devices fails, all traffic will be automatically redirected to the second VPN connection (see Figure 2.3). It allows you to nicely handle failover, as follows:
This is illustrated in the following diagram:

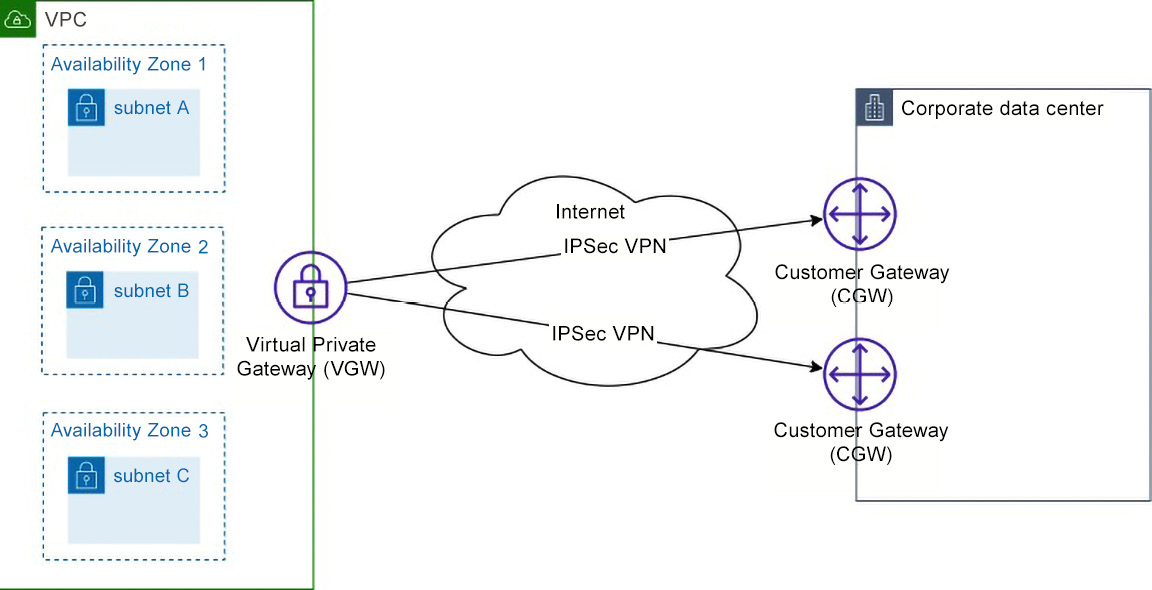

Figure 2.3: VPN connection redundancy for failover
AWS Managed VPN offers both dynamic and static routing options. Dynamic routing leverages Border Gateway Protocol (BGP) to pass routing information between the VGW on AWS and your on-premises CGW. It allows you to specify routing priorities, policies, and weights in your BGP advertisements and to influence the network path between your networks and AWS. It is worth noting that when using BGP, both the
IPsec and BGP connections must be terminated on the same CGW device(s). Both the BGP-advertised and static route information tell gateways on each side which tunnels are available to re-route traffic in case of failure. That said, the BGP protocol brings more robustness to the table thanks to the live detection checks it performs, so using BGOP-capable devices will make your life easier when dealing with failover from the primary to the secondary VPN connection upon failure.
AWS Managed VPN is a great approach when you need to connect one on-premises location with your AWS environment, but what about situations where you need to interconnect several remote offices together and with your AWS environment?
